About this item

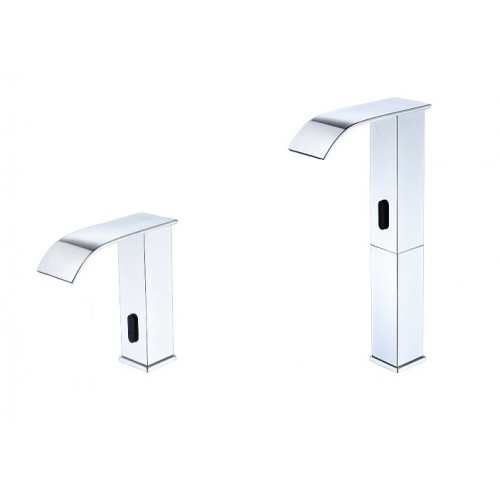

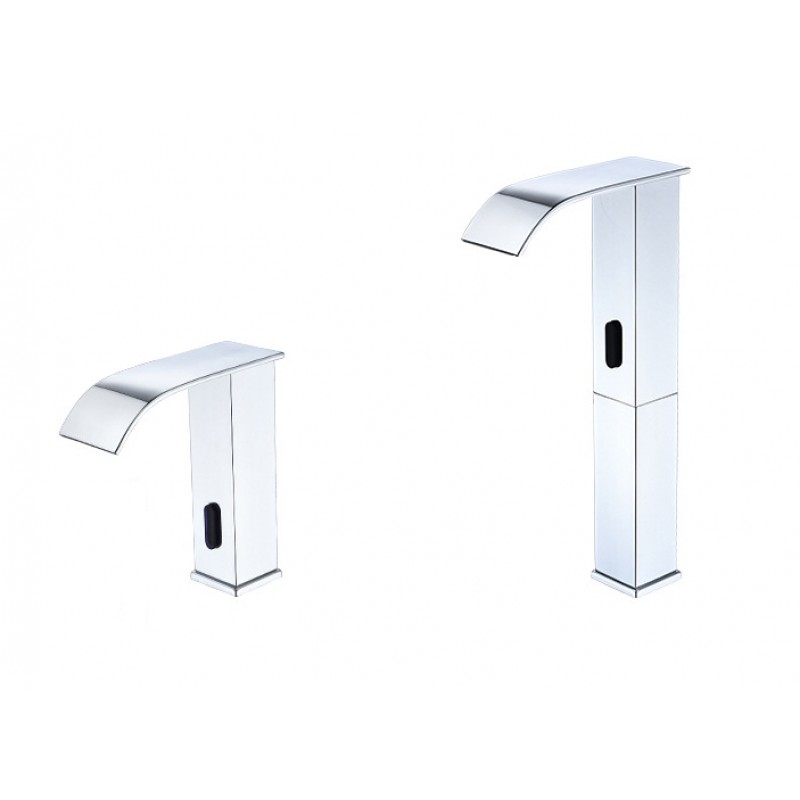

· Tall body automatic bathroom faucet, brass chrome plated, lead free

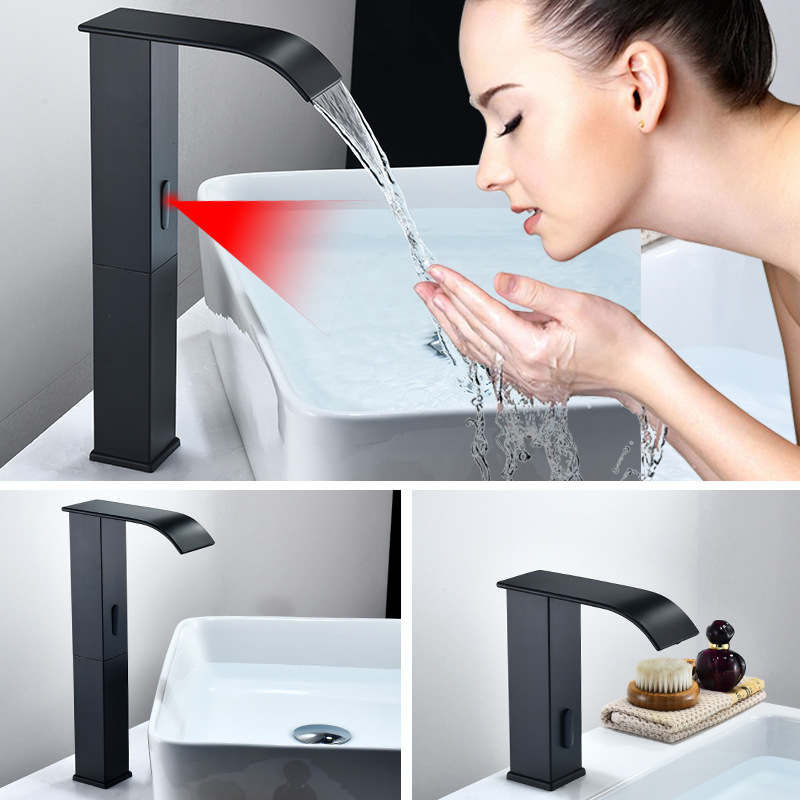

· Sensor Motion faucet,infrared sensor, sensing distance 3.9"-7.1",touchless and water saving. Put hands within the sensor area,water will flow automatically, move away hands,water will stop immediately.

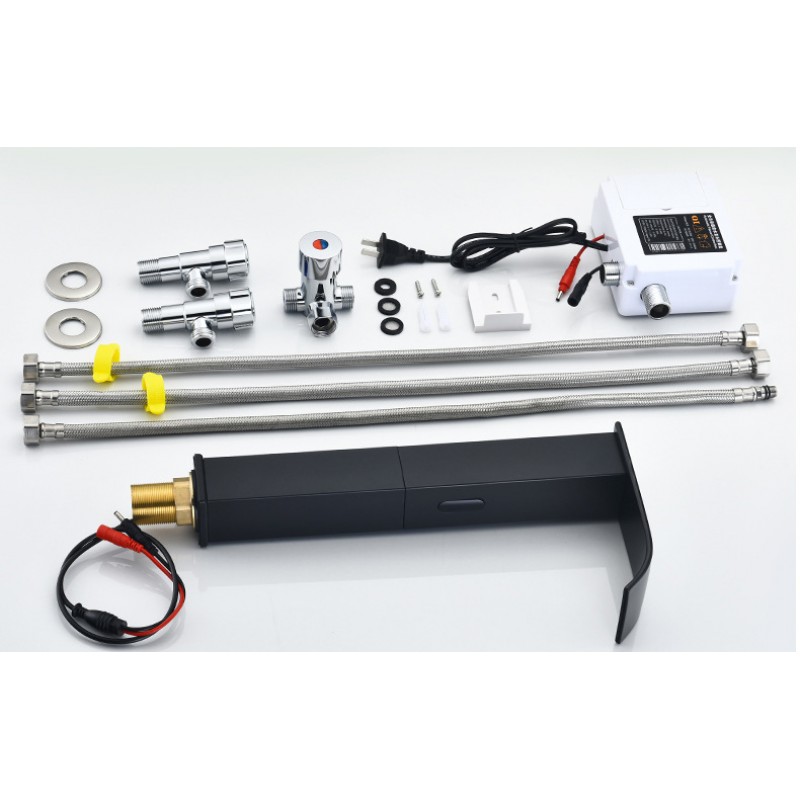

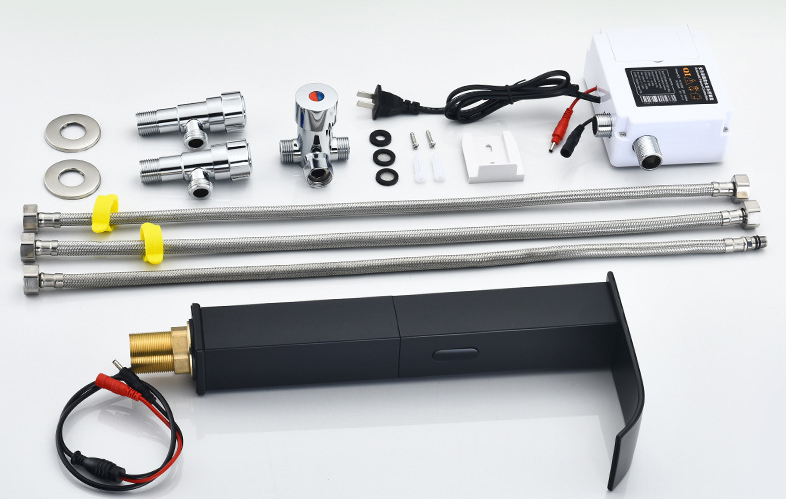

· Installation:deck mounted, single hole, high body for counter top basin with mouting screws and accessories and instruction manual

· Power: powered by 4AA alikaline battery(battery not included); install the battery in the control box; the battery can be used for 2 years for family use

· Water type: cold and hot water, with water mixing valve to adjust water temperature, The valve is installed under the sink.

· We guarantee free return and exchange for quality problems. If there is any problem, please contact us and we will solve it immediately.

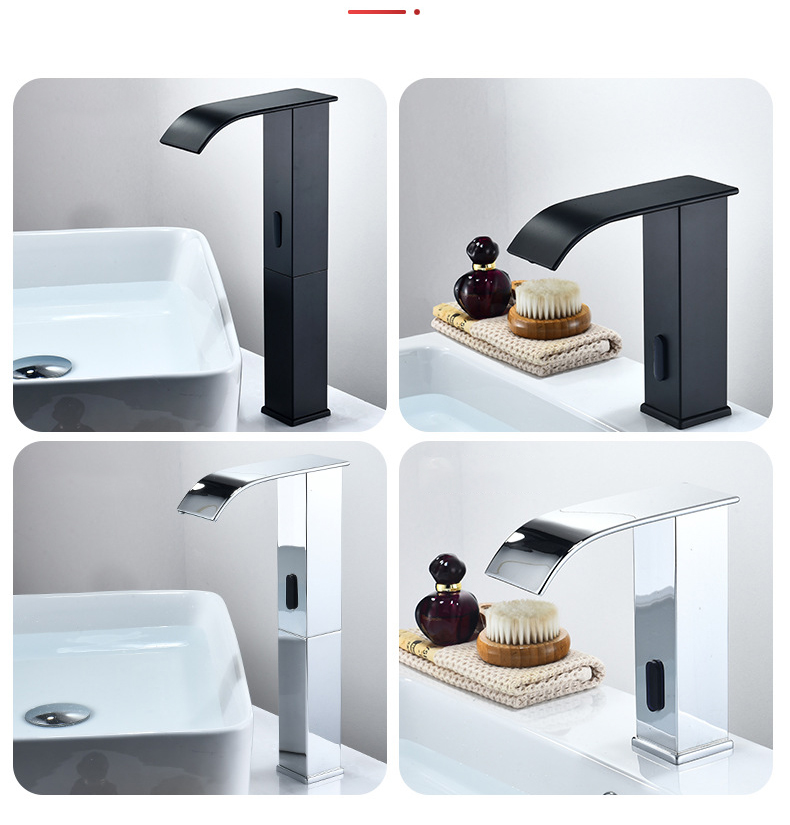

MODERN DESIGN

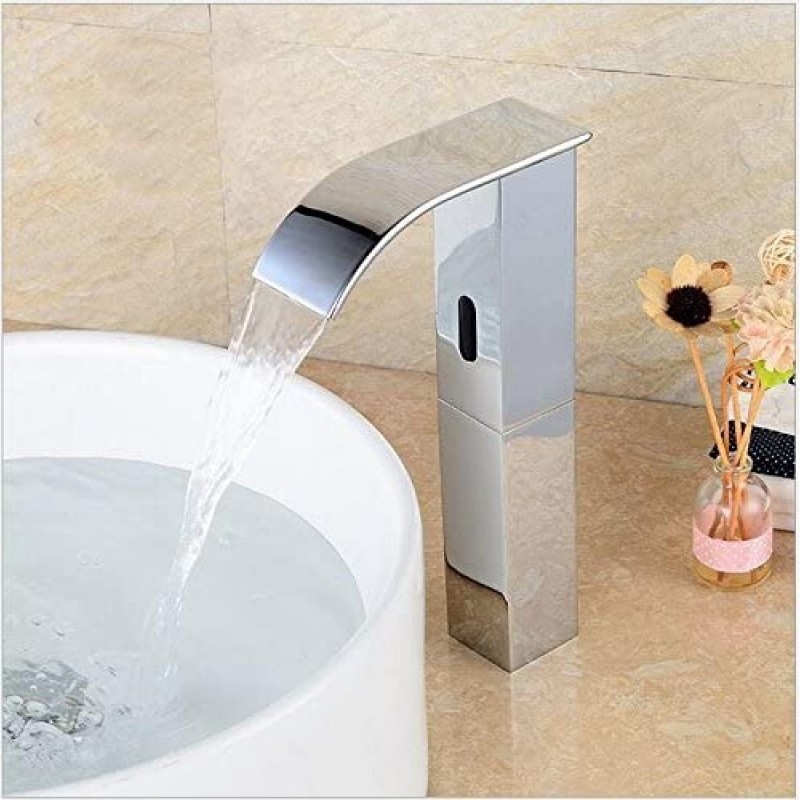

This faucet has a very modern design. Vertical square body with long flat spout. The waterfall spout makes you enjoy the washing at home.

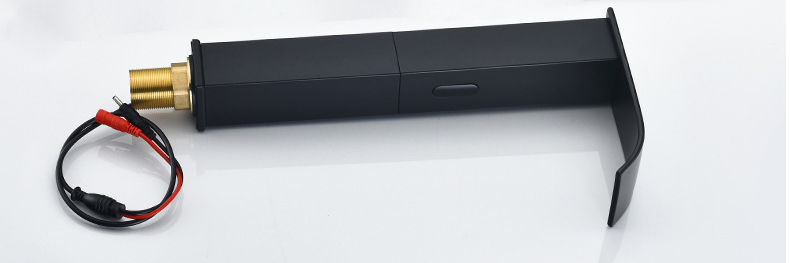

SOLID BRASS CONTRUCTION

Made of high grade brass ,lead free and never rust.

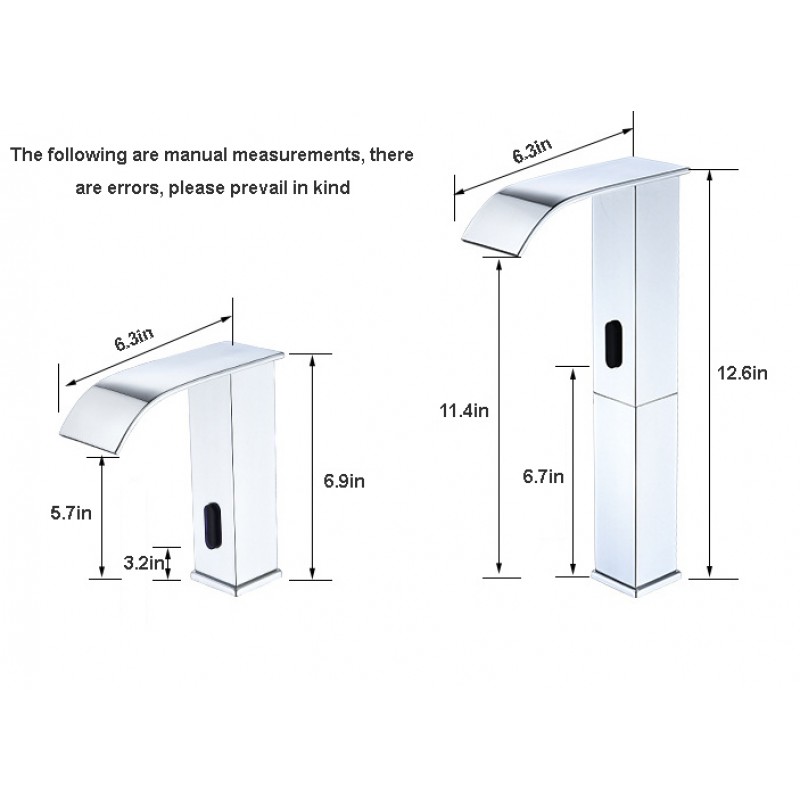

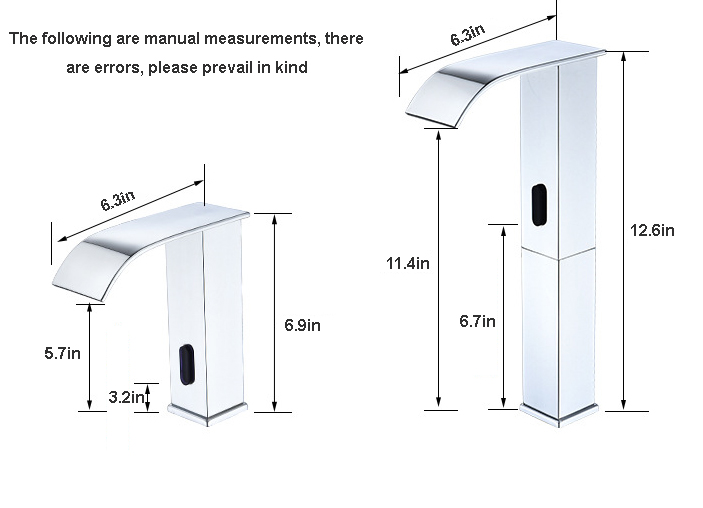

Automatic Faucet Parameters

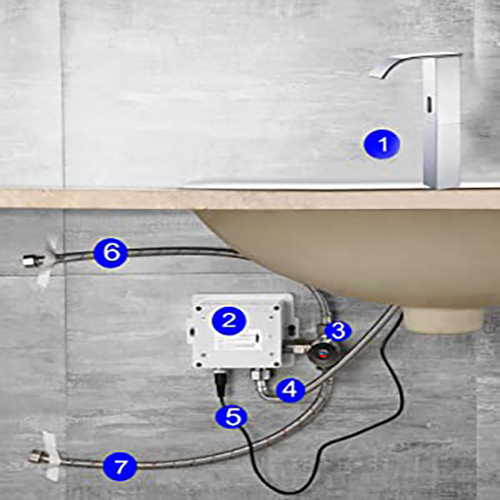

HOW TO INSTALL THE FAUCET?

1.Install faucet on the basin

2.Fix control box on the wall(put batteries in advance)

3.Connect mixer valve outlet to control box inlet

4.Connect faucet and control box outlet with flexible pipe

5.Sensor signal wire connection

6.Cold water pipe connect to mixer valve inlet

7.Hot water pipe connect to mixer valve inlet

Note：Clean water supply hoses before connection

Don't allow the water hoses to twist

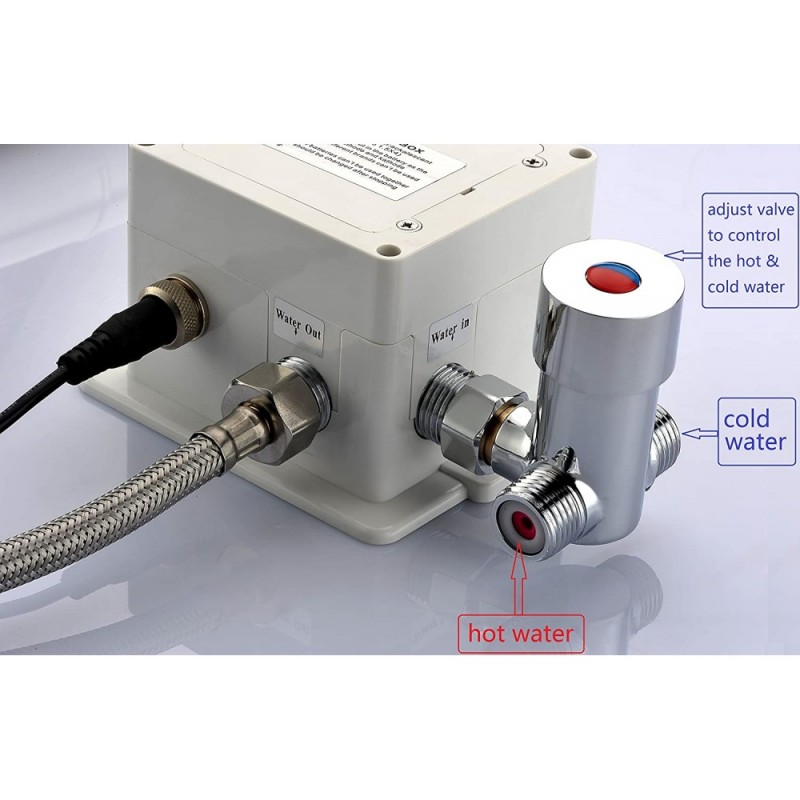

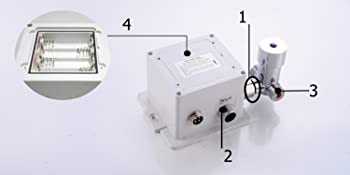

Control Box and Mixer Valve

1.Water mixer valve should be connect to the inlet of control box.

2.Control box outlet should connect to faucet.

3.Water mixing valve inlet for cold and hot water.

4.Top part of the control box is the battery case which requires 4AA alkaline battery(not included).

Note：Do not connect the cold and hot water on opposite side

Pay attention of the battery connection
